Brand Name : ASLI
Model Number : ES-3
Certification : CE
Place of Origin : Guangdong, China
MOQ : 1 Set
Price : 40000 dollars per month
Payment Terms : T/T
Supply Ability : 30 Sets per Month
Delivery Time : 20 working days
Packaging Details : Standard Export Poly Wood Case
Customized support : OEM
Brand : ASLI
Power : Electronic
Certificate : ISO 9001:2008
Packing Material : Poly wood case
Vibration : 3 Axis
Vibration Force : Customized
Table Size : 800X800mm
Max Load : 300Kg
ASTM D4728 Dynamic Shaker Random Vibration Testing Sine Random Shock Testing, which mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
Vibration Test Shaker Parameter:
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed (m/s) | Rated displacement (p-p) mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil (mm) |
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.
Pictures for reference:
Customers' Visit ASLI:
![]() |

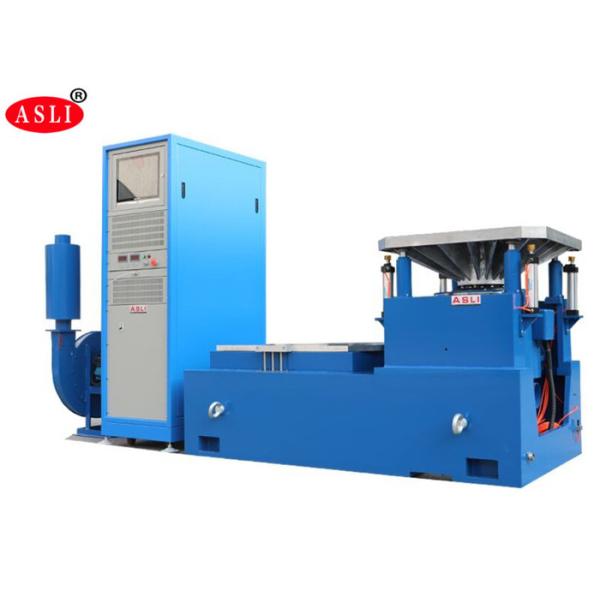

ASTM D4728 Random Vibration TestingDynamic Shaker With 300kg Max Load Images |
